KG-COVID-19: Knowledge Graph for COVID-19 Response

Publication: Reese JT, Unni D, Callahan TJ, Cappelletti L, Ravanmehr V, Carbon S, Shefchek KA, Good BM, Balhoff JP, Fontana T, Blau H, Matentzoglu N, Harris NL, Munoz-Torres MC, Haendel MA, Robinson PN, Joachimiak MP, Mungall CJ. KG-COVID-19: A Framework to Produce Customized Knowledge Graphs for COVID-19 Response. Patterns (N Y). 2021 Jan 8;2(1):100155. http://dx.doi.org/10.1016/j.patter.2020.100155 PMCID: PMC7649624

The goal of the KG-COVID-19 project is to use Machine Learning (ML) to generate useful COVID-related knowledge. Rich biological knowledge exists about SARS-CoV-2 and related viruses (SARS-CoV, MERS-CoV), for example genomics, epidemiology, susceptibility, clinical/symptoms, viral lifecycle, pathways, and inhibitors. However, much of this information is either locked in textual form in the literature, or in individual siloed databases, making integrative prediction difficult and costly.

To address this challenge, we produced a COVID-19 knowledge graph (KG) to support both DOE and international COVID-19 efforts: https://github.com/Knowledge-Graph-Hub/kg-covid-19/wiki

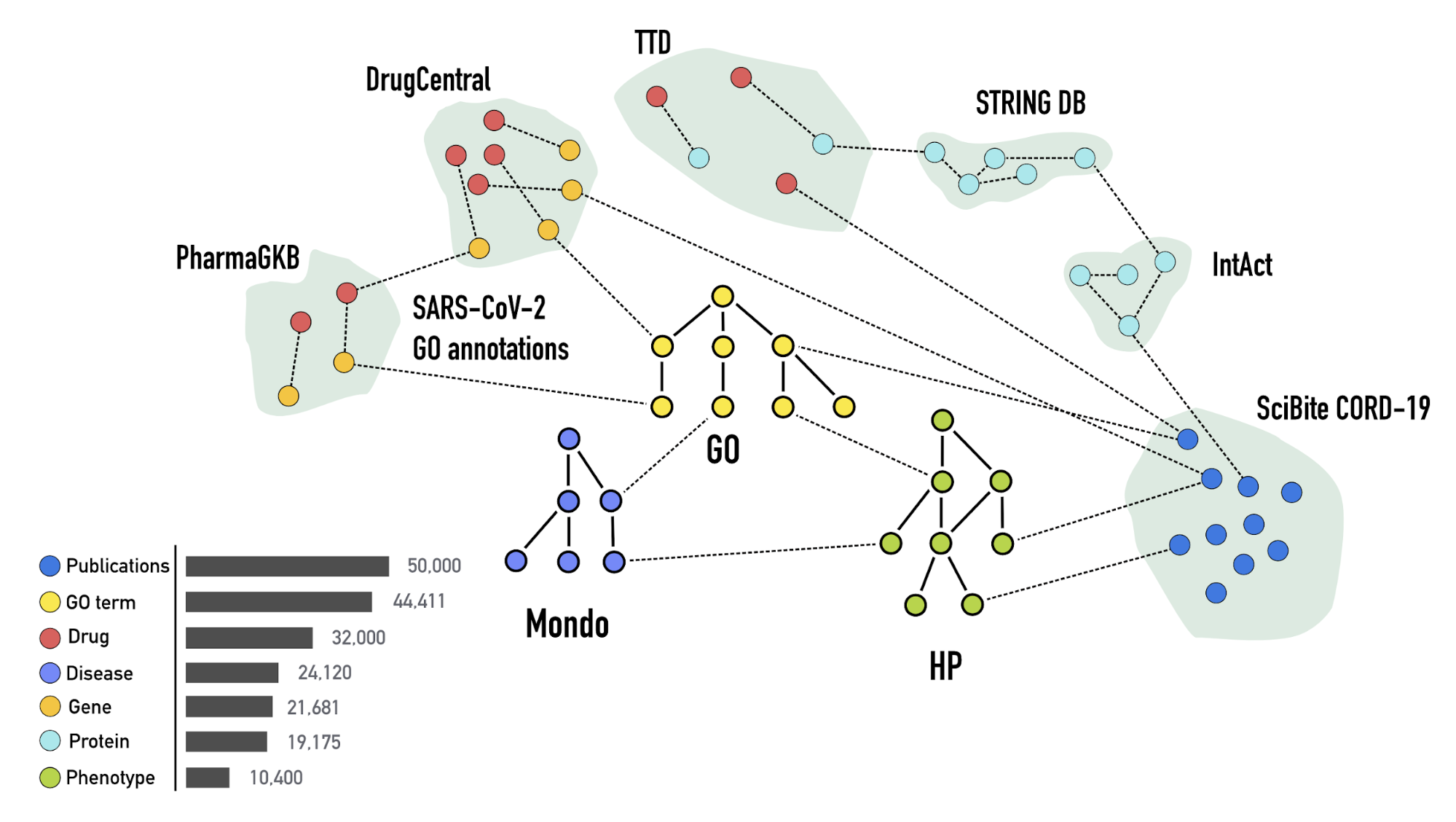

This knowledge graph incorporates up-to-date data extracted from biomedical databases and literature, including drug, protein-protein interactions, SARS-CoV-2 gene annotations, concept and publication data from the CORD19 data set. We also ingest the Human Phenotype Ontology, the Gene Ontology, and Mondo for phenotype, gene annotations and diseases, respectively, in order to integrate the data in an ontology-aware way.

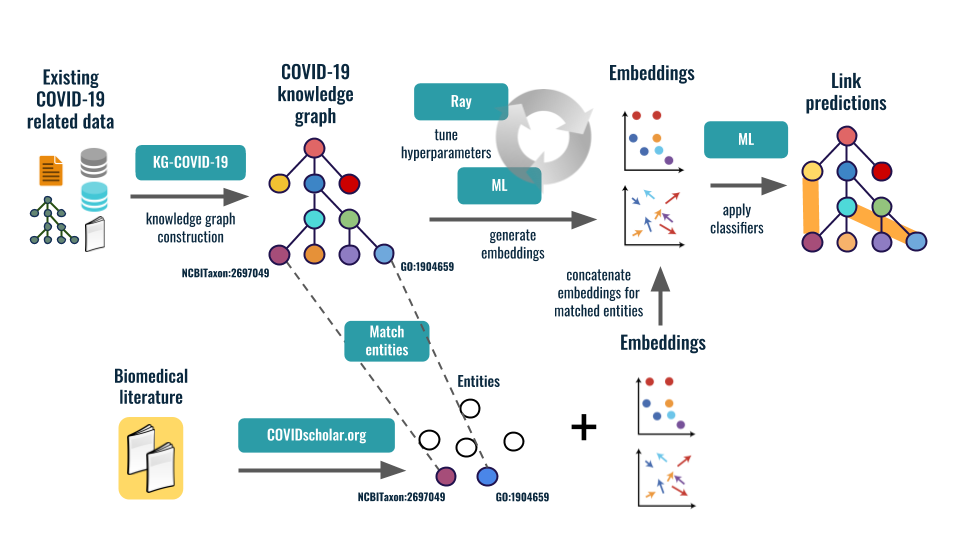

We applied machine learning (ML) techniques to discover new links (for example, identifying existing drugs that could be repurposed to treat COVID-19) and generate actionable knowledge. In addition, we provided this knowledge graph to the COVID-19 research community in order to accelerate COVID-19 research.


The LDRD funding for the KG-COVID-19 project ended in 2021, but the software and KG continue to be used in N3C projects to investigate mechanisms of long COVID. The framework for building KGs that was developed in this project is being used as a building block for constructing other KGs. For example, in a current project, it is being used to build an integrated KG that includes patient-level data.

People:

  • Justin Reese - LBNL
  • Deepak Unni - LBNL (now EMBL)
  • Marcin Joachimiak - LBNL
  • Chris Mungall - LBNL

External Collaborators:

  • Peter Robinson - Jackson Laboratory
  • Tiffany Callahan - University of Colorado Denver (now Columbia University)
  • Luca Cappelletti - University of Milan
  • Vida Ravanmehr - Jackson Laboratory
